78610 - ELO Touchsystems ET1715L-8CWB-1-GY-G 17" Flat Panel Display / Touch Screen Monitor

he Elo 1715L 17-inch standard format touchscreen monitor delivers professional-grade built-for-touch reliability in an affordable compact footprint. The space-saving touchscreen includes a stable base, side controls and lock-out capability for public use. Whether used as a desktop or a wall-mounted unit, the 1715L offers flexibility for mounting and three touch technology options.

Touch Technology & Capacity

5-Wire Resistive (AccuTouch®) - Single-Touch
SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch

Diagonal Size

17'' diagonal, Active matrix TFT LCD (LED)

Aspect Ratio

5:4

Active Area (mm)

13.3" x 10.6" / 338mm x 270mm

Resolution

1280 x 1024

Other Supported Resolutions

1280 x 1024 60, 75 Hz
1280 x 960 60 Hz
1152 x 864 75 Hz
1024 x 768 60, 70, 75 Hz
1024 x 768 65 Hz (Sun)
832 x 624 75 Hz (Mac)
800 x 600 56, 60, 72, 75 Hz
720 x 400 70 Hz
720 x 350 70 Hz
640 x 480 60, 72, 75 Hz
640 x 480 66 Hz (Mac)

Viewing Angle

Horizontal: ±85° or 170° total / Vertical: ±80° or 160° total

Number of Colors

16.7 million

Brightness (typical)

LCD panel: 250 nits
AccuTouch: 200 nits
IntelliTouch: 225 nits
PCAP: 225 nits

Response Time-total (typical)

5 msec

Contrast Ratio

1000:1

Input Video Format

Analog VGA

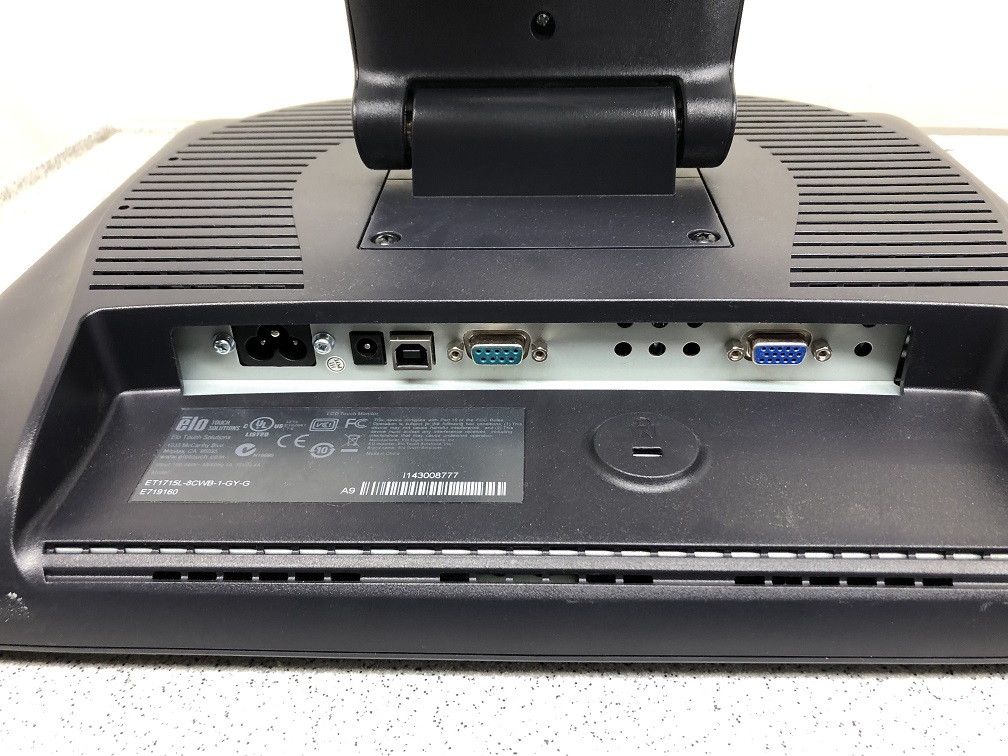

Input Video Signal Connector

Mini D-Sub 15-Pin VGA type

Power Supply

Internal AC, Optional external DC (power brick)

Input Voltage

AC: 100-240 VAC, 50/60 Hz; DC: +12VDC ±5%

Input Connector

AC: IEC 60320 C6 / DC: Coaxial power jack (2 mm pin diameter, 6.4 mm barrel diameter, 8.8 mm barrel length)

Input Frequency

Horizontal: 31.5-80 kHz
Vertical: 56.3-75 Hz
