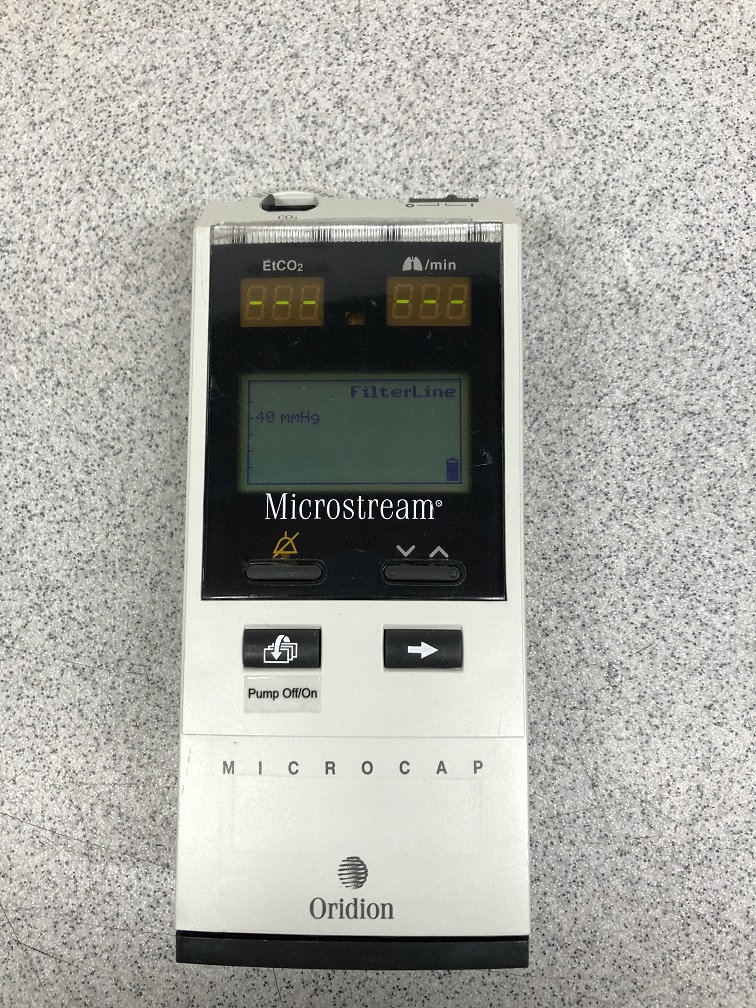

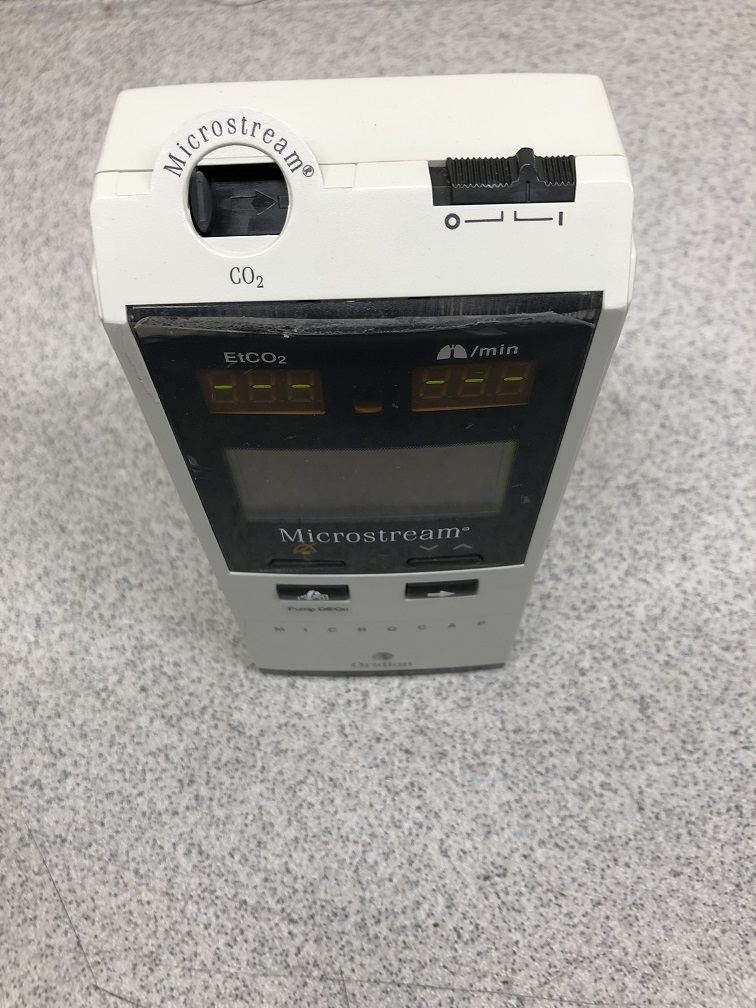

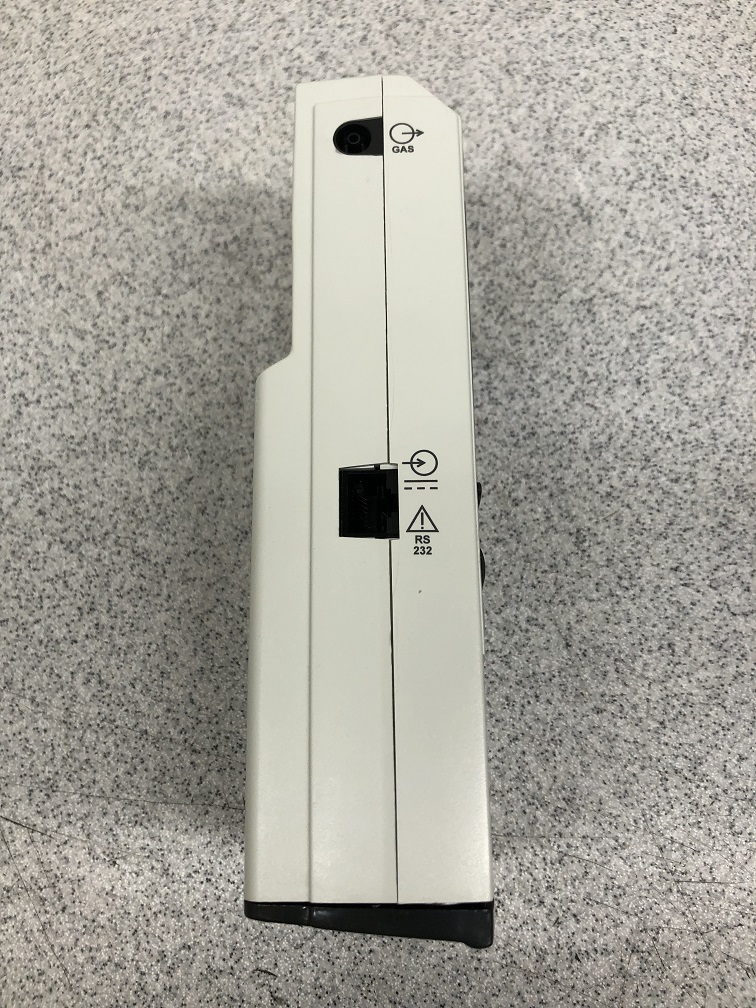

79926 - Oridion Microcap Handheld Capnograph

Microcap handheld capnographs deliver an easy-to-use assessment of respiratory status, whether intubated or non-intubated, in any clinical setting Specifications: Sampling Flow Rate: 50 ml/ min Warm-up Time: 30 seconds typical Accuracy: 0-38 mmHg 2 mmHg 39-99 mmHg 2 mmHg (5% of expected reading in mmHg +[0.08 x (expected reading in mmHg 39mmHg)]) Expected reading = (barometric pressure in mmHg) x (%CO2 (in Vol%)) x 0.97 Equivalent values for kPa and Vol% Respiratory rate 0-150 breaths/min Modes: Adult and Neonate Alarms: Adjustable alarm limits for etCO2, FiCO2, and respiratory rate Display: Graphic LCD (128 x 64 dots) with LED backlight, (contrast and backlight control) Bright, seven-segment LED for numeric display of etCO2 and respiratory rate Two color alarm bar Interface: Nurse Call RS232 interface between monitor and remote systems Bernoulli MSM Nurse Call System easily wired via stereo phone jack Philips* Patient Monitor Interface: Microcap only - one parameter (v3.15 and higher)
