Medtronic Performer CPB Surgical Bypass Heart Lung 4 Blood Pump Perfusion System
Medtronic Performer CPB Surgical Bypass Heart Lung 4 Blood Pump Perfusion System
82551 - Medtronic Performer CPB Surgical Bypass Heart Lung 4 Blood Pump Perfusion System

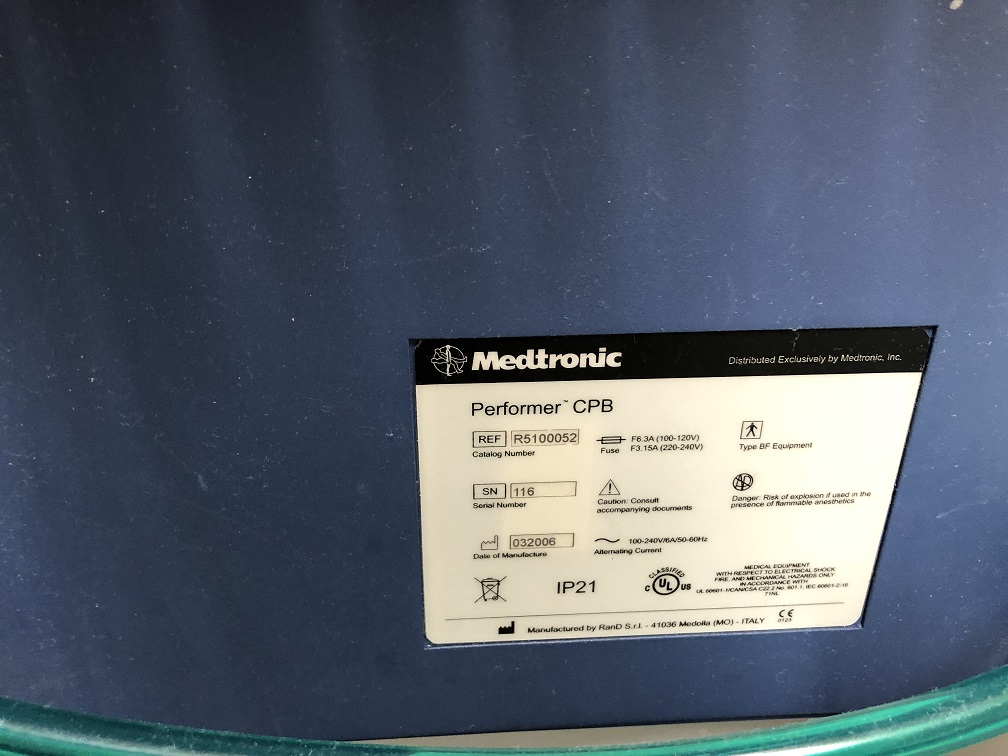

Manufactured 03/2006

Includes:

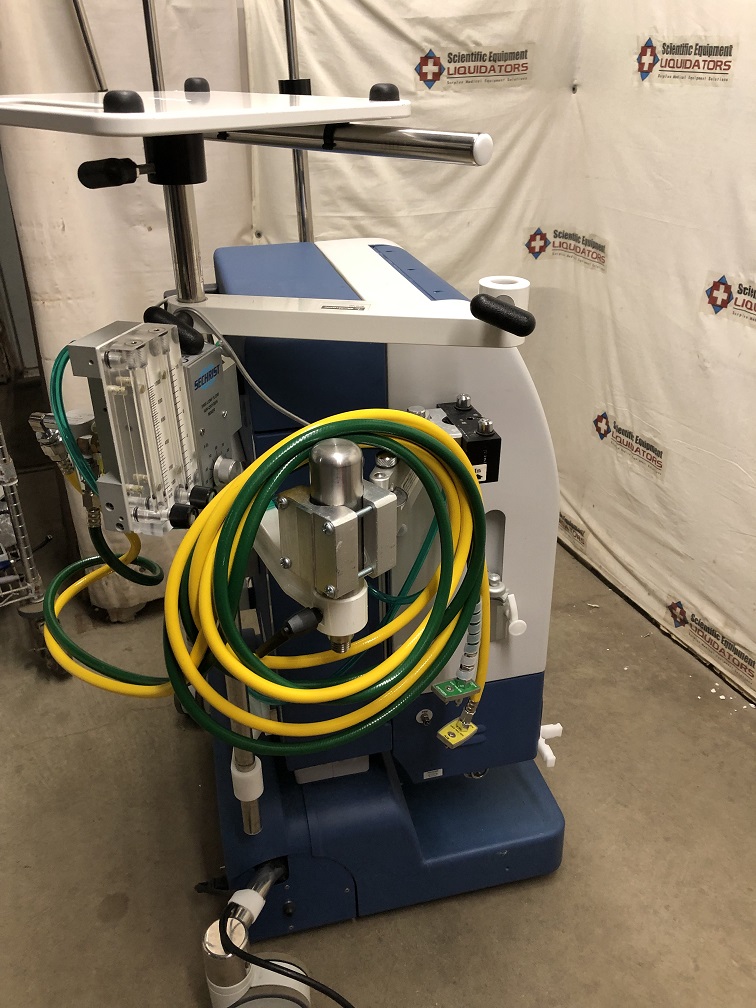

Air, Vacuum and Oxygen Hose
Seachrist 3500 Air Oxygen Mixer

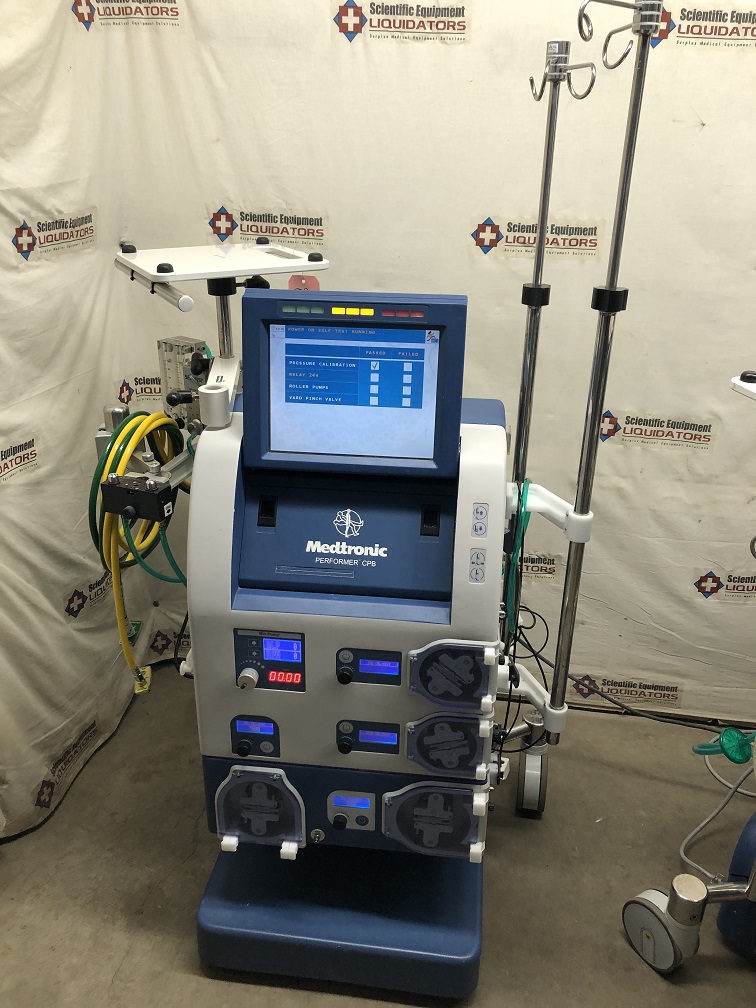

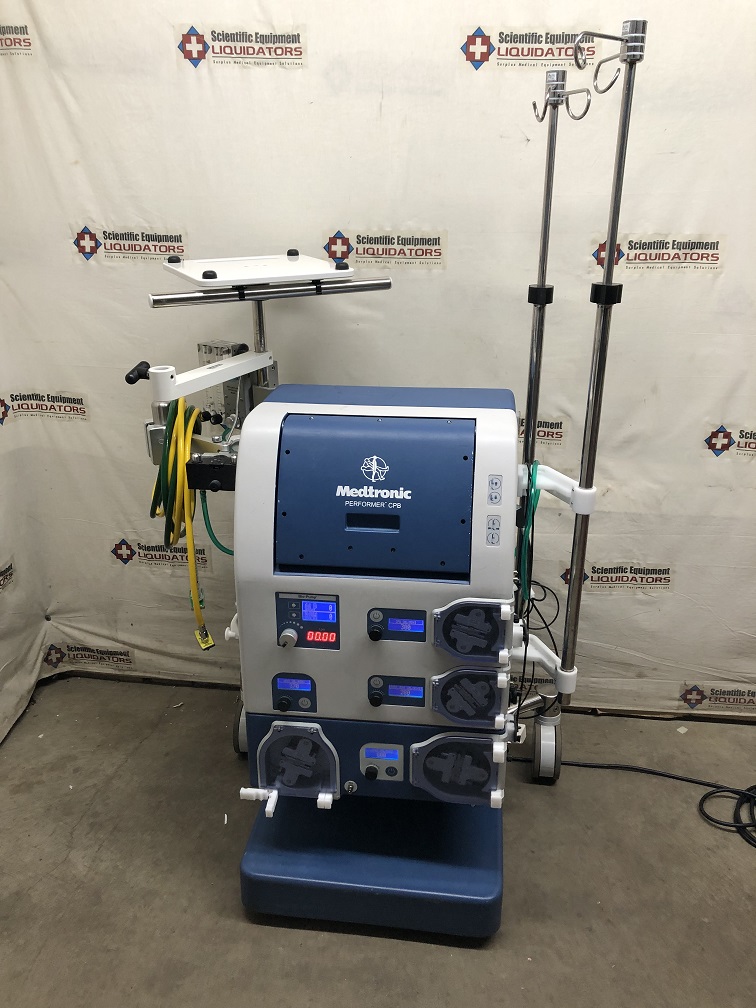

The Medtronic Performer CPB System hereafter referred to as the Performer CPB is an electromechanical extracorporeal support device used during cardiopulmonary bypass procedures. It is an integrated console that can provide total circulatory support of the cardiopulmonary system using the Medtronic Bio-Pump Centrifugal Blood Pump.

Temperature monitoring using YSI Series 400 probes for 8 temperatures.
Flow monitoring for the arterial line using a reusable Transonic ultrasonic flow probe.
Oxygen saturation and hematocrit monitoring using an opto-electric sensor.
Timers for the pump time, clamp time, and cardioplegia delivery times and intervals.
Air Bubble Detection (ABD) of macro-air in the arterial circuit.
Air Bubble Detection (ABD) of macro-air in the cardioplegia circuit.
Active Air Removal (AAR) technology.
Level detection utilizes a pair of level sensors to monitor changes in fluid or blood volume in the reservoirs.
12.1 In color touch screen display.
Medtronic Performer CPB Specifications
Physical
Width: 19.6 In (50 cm)
Depth: 22 In (56cm)
Height: 39.4 In (100 cm) - 55.1 In (140 cm)
Weight: Approx. 198 lbs (90 kg)
Environmental
Operating Conditions
Temperature: 50? - 104? (10? - 40?)
Humidity: 30% - 75% Non-condensing Relative Humidity
Atmospheric Pressure: 700 -1060 mBar
Transport and Storage Conditions
Temperature: -4? - 140? (-20? - 60?)
Humidity: 10% - 90% Non-condensing Relative Humidity
Atmospheric Pressure: 700 - 1060 mBar
Electrical Data
Classification (as for EN60601-1): Class I, type BF
Operation Mode: Continuous
Voltage: 100 to 240 VAC ± 10%
Frequency: 50 to 60 Hz ± 10%
Current: max. 6 A (100 to 120V); max. 3 A (220 to 240V)
Power Absorption: max. 600 VA
Earth Leakage Current: < 300 ?A
Patient Leakage Current: < 100 ?A
Ingress Protection(IP code as for IEC 60529): IP 21: protected against solid foreign objects of 12 mm diameter and greater; protected against drop water.

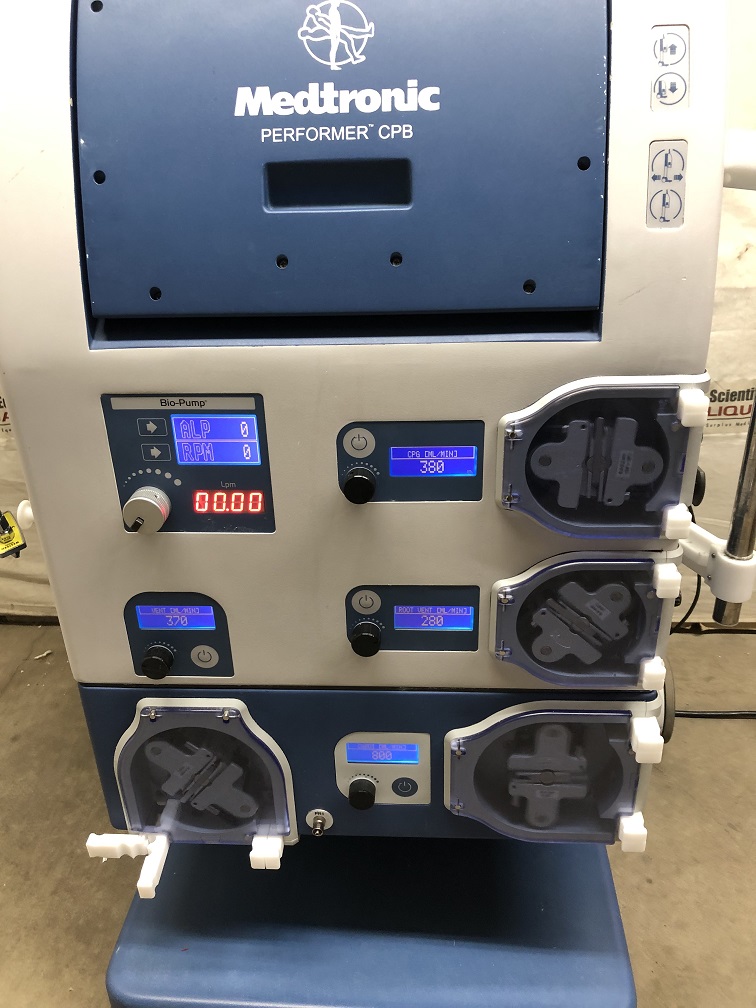

Pump PM1
Unidirectional peristaltic pump with manual operating system
Flows: Up to 3.7 L/min (9.5 mm (3/8 in) pump segment); Up to 3.7 L/min (6.4 mm (1/4 in) and 6.4 mm (1/4 in) pump segments); Up to 1.8 L/min (6.4 mm (1/4 in) pump segment)
Maximum tolerance: ± 10%
Pressure Range Within Tolerance: -150 to +500 mm Hg
Protection system: Feedback with rotation signal detected on the encoder; Open-cover sensor (and subsequent pump blockage).
Pump PM2
Unidirectional peristaltic pump with manual operating system
Flows: Up to 1.5 L/min (9.5 mm (3/8 in) pump segment); Up to 1.5 L/min (6.4 mm (1/4 in) and 6.4 mm (1/4 in) pump segments); Up to 0.8 L/min (6.4 mm (1/4 in) pump segment)
Maximum tolerance: ± 10%
Pressure Range Within Tolerance: -150 to +500 mm Hg
Protection system: Feedback with rotation signal detected on the encoder; Open-cover sensor (and subsequent pump blockage).
Pump PM3
Unidirectional peristaltic pump with manual operating system
Flows: Up to 0.6 L/min (6.4 mm (1/4 in) pump segment); Up to 0.16 L/min (3.2 mm (1/8 in) pump segment)
Maximum tolerance: ± 10%
Pressure Range Within Tolerance: -150 to +500 mm Hg
Protection system: Feedback with rotation signal detected on the encoder; Open-cover sensor (and subsequent pump blockage).
Pump PM4
Unidirectional peristaltic pump with manual operating system
Flows: Up to 1.1 L/min (6.4 mm (1/4 in) and 6.4 mm (1/4 in) pump segments); Up to 0.7 L/min (6.4 mm (1/4 in) and 3.2 mm (1/8 in) pump segments); Up to 0.6 L/min (6.4 mm (1/4 in) pump segment)
Maximum tolerance: ± 10%
Pressure Range Within Tolerance: -150 to +500 mm Hg
Protection system: Feedback with rotation signal detected on the encoder; Open-cover sensor (and subsequent pump blockage).
