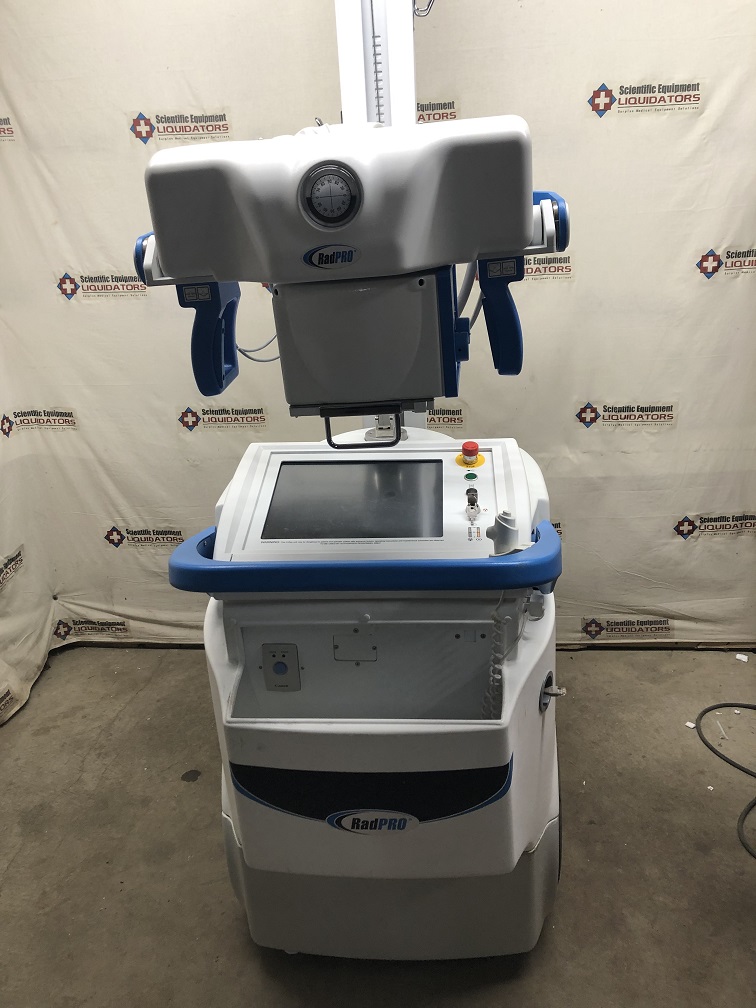

Sedecal SM-40 HF-B-D-C RadPro Mobile Battery X-Ray Generator Beam Limiting Device Collimator R221/A
Sedecal SM-40 HF-B-D-C RadPro Mobile Battery X-Ray Generator Beam Limiting Device Collimator R221/A
82673 - Sedecal SM-40 HF-B-D-C RadPro Mobile Battery X-Ray Generator Beam Limiting Device Collimator R221/A DHHS

The Computer Screen Does Not Come On.

FEATURES
Canon Flat Panel Detectors

The RadPRO Mobile 40kW Digital X-ray System is compatible with the Canon portable and wireless digital radiography detectors. Depending on your organization's needs, each flat panel detector series has either a Gadolinium Oxysulfide or Cesium Iodide scintillator, helping to produce high resolution images that may be previewed within 3-5 seconds.
Single or Dual Panel Solution

Single detector and dual panel detector configurations are available.
Mobile Radiography Room

Rather than bring the patient to the radiography room, you can bring the radiography room to the patient with this mobile solution. Patients with limited mobility, need assistance at bedside, or in wheelchairs can easily be imaged.

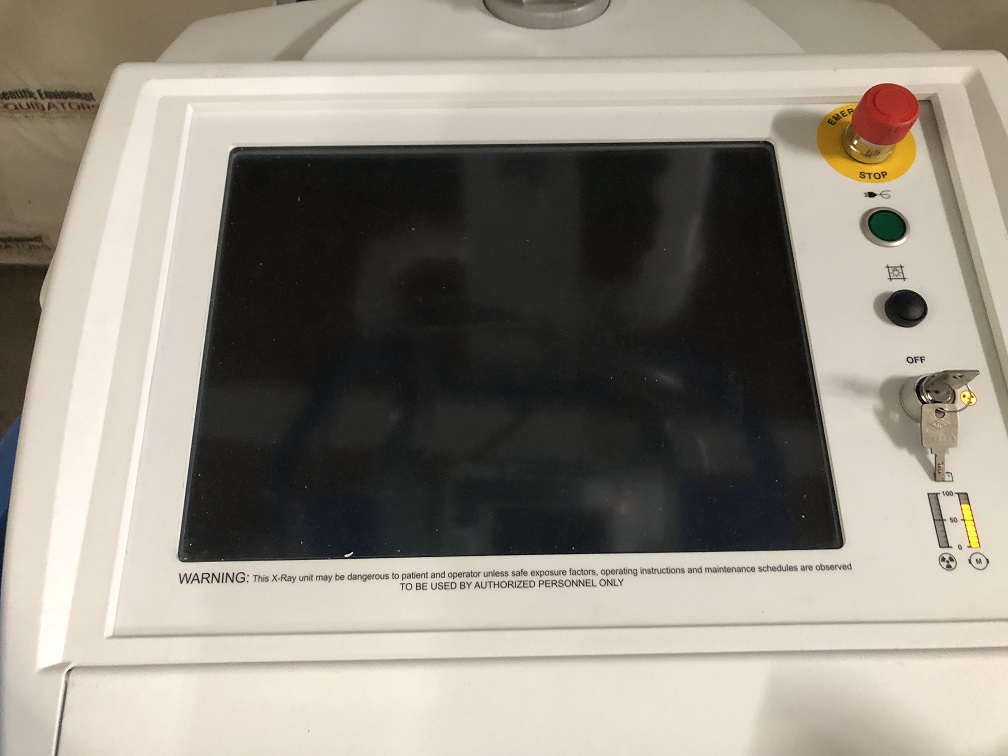

For added technologist's convenience, 17" inch touch-screen with integrated generator controls allows the technologist to simply select the study being performed and automatically program the generator to the correct technique. With storage areas for all that a technologist needs during a mobile examination, the RadPRO Mobile 40kW Digital X-ray System is an invaluable resource for the technologist.
Maneuvering and Positioning

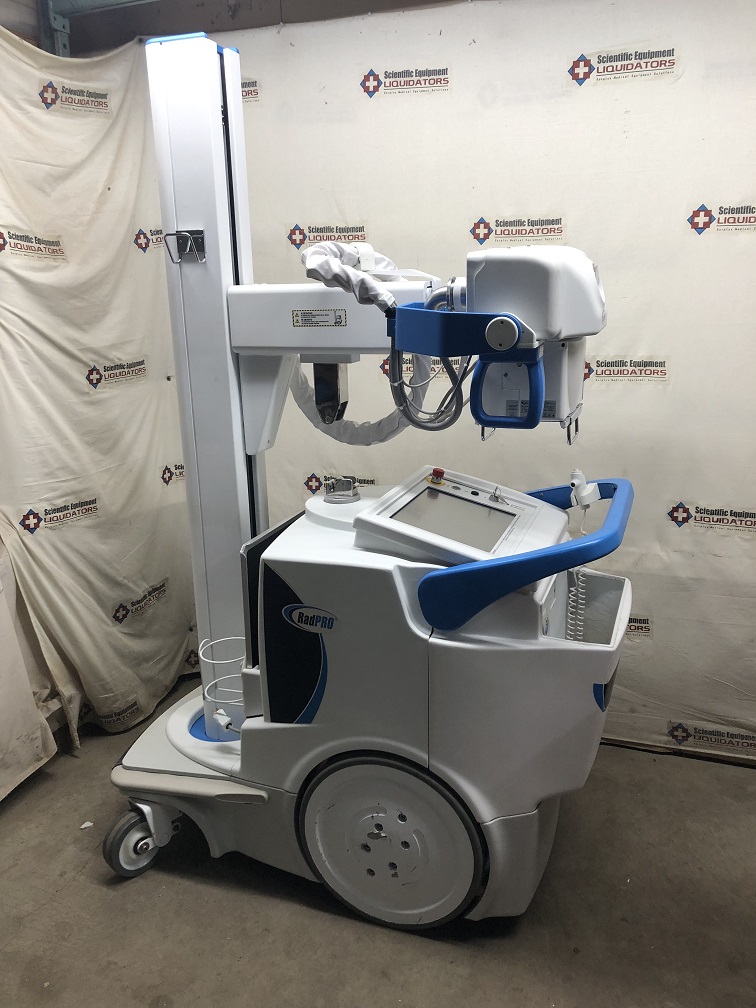

With a mere press of the handle, large 17 inch wheels that are powered by 2 independent drive motors easily tackles typical facility obstacles. With power-assisted pressure sensitive steering, the RadPRO Mobile 40kW Digital X-ray System is simple to control and drive while minimizing the amount of force required by the technologist. The telescoping tube arm provides 6 additional inches in length to provide flexible positioning management at a patient's bedside. Equipped with precision positioning buttons, a technologist can easily adjust the mobile unit from the handles of the tube arm if needed.
Generator/Power

The high frequency generator provides up to 150kVp, 500mA, and 500mAs which, when paired with the standard 300KHU x-ray tube, is powerful enough to shoot through most patients, including bariatric. With 2 battery systems, the RadPRO Mobile 40kW Digital X-ray System provides independent power for exposure control and the drive system reducing power drain and allowing for increased productivity.
SPECIFICATIONS
Weight 1210 lbs
Additional Specifications
Generator
kW Rating: 40 kW
kVp Range: 40 to 150 kVp
mA Range...: 10 - 500 mA Selectable
Number of mA Stations : 18
Exposure Time Range: 0.001 - 10 sec.
mAs Range: 0.1 - 500 mAs
Generator Integration :Yes, 3 PT technique
Anatomical Programs : 500+ Anatomical settings
Line Requirements: Single Phase Line Regulation from 100 - 240 Vac (+/-10%)

X-Ray Tube
Anode Heat Capacity :300 kHu
Focal Spot : 0.6 / 1.2 mm
Target Angle: 12º (Optional 16º)
Tube Rotation : "X" Axis +/- 155°
Tube Rotation: "Z" Axis 90°
Tube Travel - Vertical: 57 inches (145 cm)
Tube Travel - Horizontal: 23.6 inches (60 cm)

Tube Arm
Counterbalanced Tube Arm: Yes

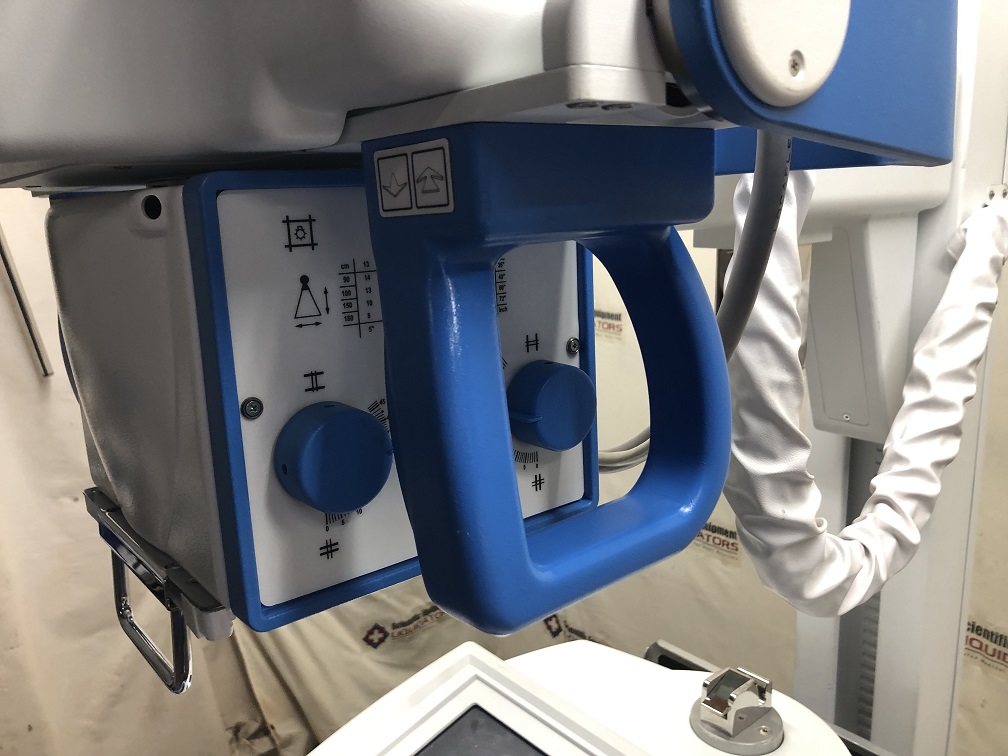

Collimator: Manual
Lock Release Points: 5
Tube Arm Reach: 48.8 inches (124 cm)
Column Rotation : +/- 270°
Maximum Focal Distance to Floor: 79.7 inches (202.5 cm)
Minimum Focal Distance to Floor: 22.6 inches (57.5 cm)

Mobile Unit
Weight: 1210 pounds (550 kg)
Size (L x W x H) 53.35 inches x 26.7 inches x 77.6 inches (1355 mm x 678 mm x 1970 mm)
Touch Screen Console: 17" inch monitor
Anti-collision System : Yes, Frontal and Lateral
Motorized Unit: Yes, 4 km/h
Motor Drive(Standard): Two (2) independent drive motors, one for each wheel (forward and reverse)
Battery Systems: Two (2) independent systems for drive and exposure
