Zimmer A.T.S. 750 Automatic Tourniquet System
Zimmer A.T.S. 750 Automatic Tourniquet System

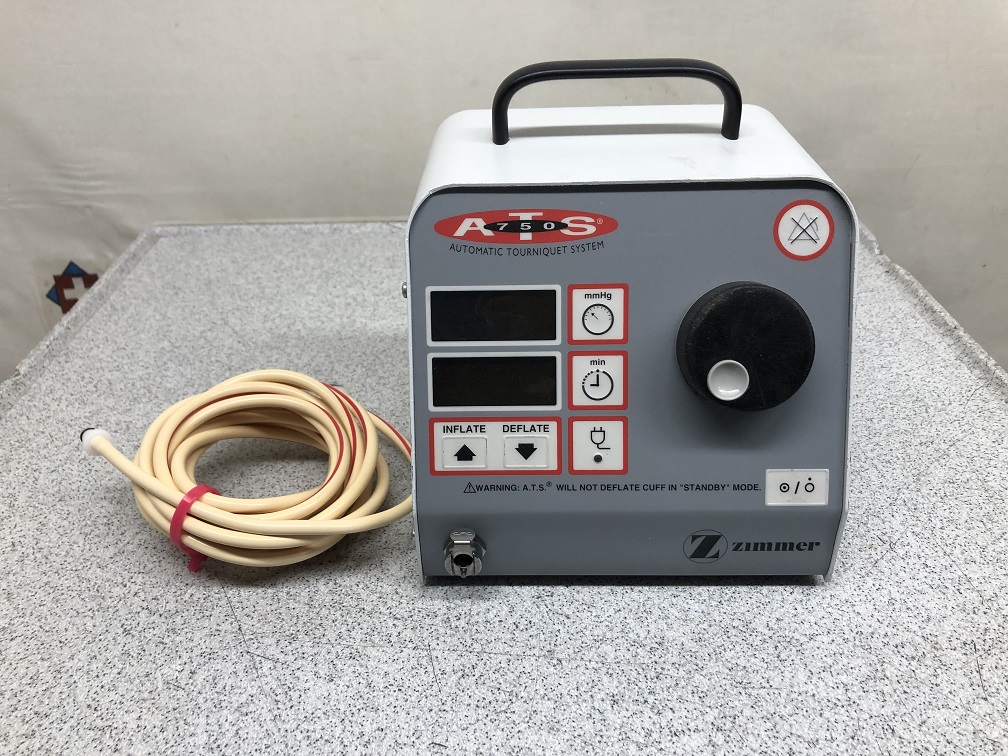

82893 - Zimmer A.T.S. 750 Automatic Tourniquet System

Includes:
1 Hose
No Cuffs

Zimmer ATS 750 DESCRIPTION
The Zimmer A.T.S. 750 Tourniquet is a full-featured and automatic tourniquet system that is sensitive to the cost issues that all health care professionals face today. Its features include:

Uses ambient air
Uses electronic and microprocessor regulated pressure
Single port system: Uses single port, single bladder cuffs
30 minute battery back-up provides mobility by helping ensure continuous power
Visual and audible alarms activated when an unsafe condition is detected
Self-check calibration each time the A.T.S. 750 System is switched on

SPECIFICATIONS
General
Overall Dimensions: 8? (20.3 cm) H x 7? (17.8 cm) W x 7.9? (20.1 cm) D
Weight: 7.7 lbs. (3.5 kg)

Timer
Time Alarm Set Ranges: 5 – 240 minutes; 5 minutes increments
Timer Accuracy: 0.25% of elapsed time

Power
Line Voltage Range: 100 – 240 VAC, 50/60 Hz., Auto Switching
Line Current: 670 mA RMS @ 120 VAC
Input Power: 53 Watts Typical
Power Cord: Type SJT, AWG 16, 14 ft. (4.27 m)
Power Plug: Hospital grade, 3 prong straight blade, 15 Amp

Pressure
Cuff Pressure Range: 50 – 475 mmHg, 5 mmHg increments
Pressure Accuracy: ±5 mmHg (50 – 475 mmHg)
Pressure Regulation: ±6 mmHg of set point (10 second average under non-transient conditions without external leaks)
Maximum Pressures: 475 mmHg cuffs
